34wk,2017 : Successful Case

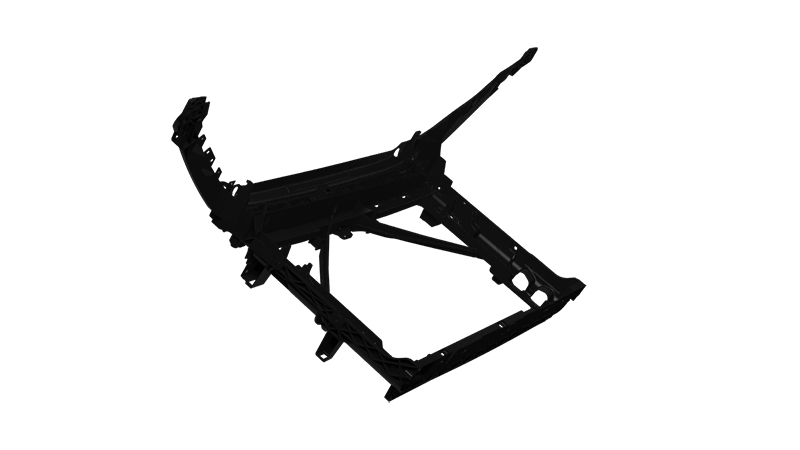

TINA_GPT_Car Console

Material: PA66+60%GF

Part Weight: 2500g

Cavity Qty.: 1

System Type: TINA GPT

1. Due to the special character of resin PA66+GF60%, YUDO hot runner system is made from special material with special gate structure to insure the gate temperature and service life of nozzle head.




2. With the all-in-one TINA AM structure, the hot runner system can be assembled and disassembled conveniently and efficiently avoiding leakage problem caused by missing parts in assembly and maintenance processes;


3. Screwed-in type nozzle and manifold effectively prevent resin leakage problem caused by mold plate machining precision failures;

4. As pneumatic, hydraulic and cooling channels are pre-connected with YUDO hoses, there is less touch between mold plates and hot runner system, thus mold design and tooling become more convenient and simpler.
