10wk,2017 : Successful Case

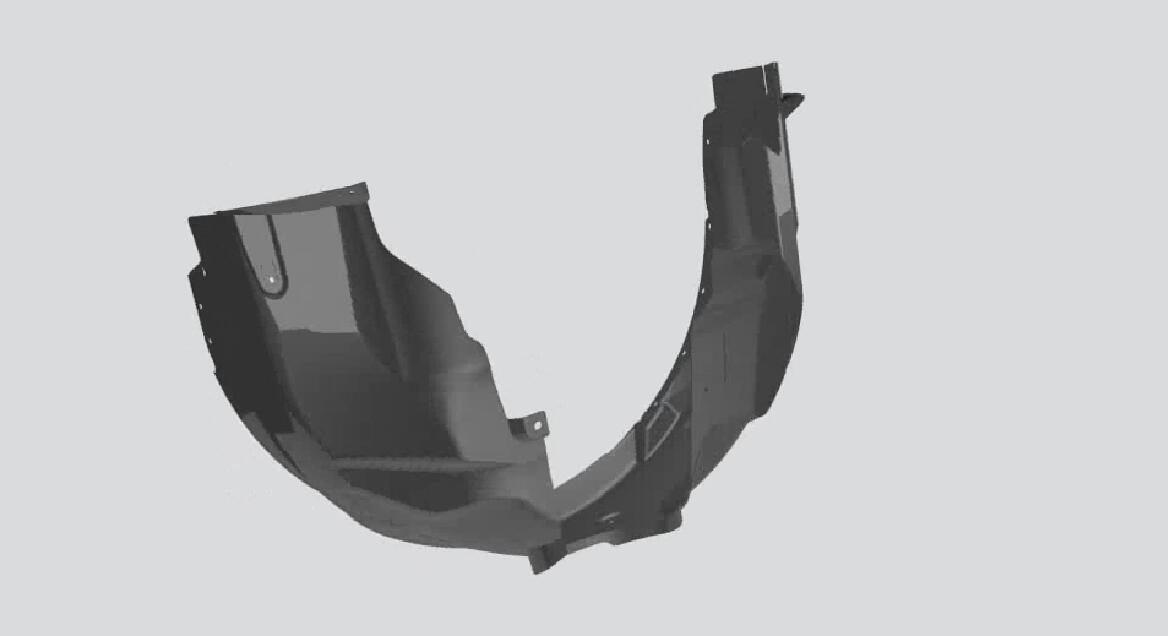

TINA AM_Wheel Arch

Material: PP

Part Weight: 1287g

Cavity Qty.: 1

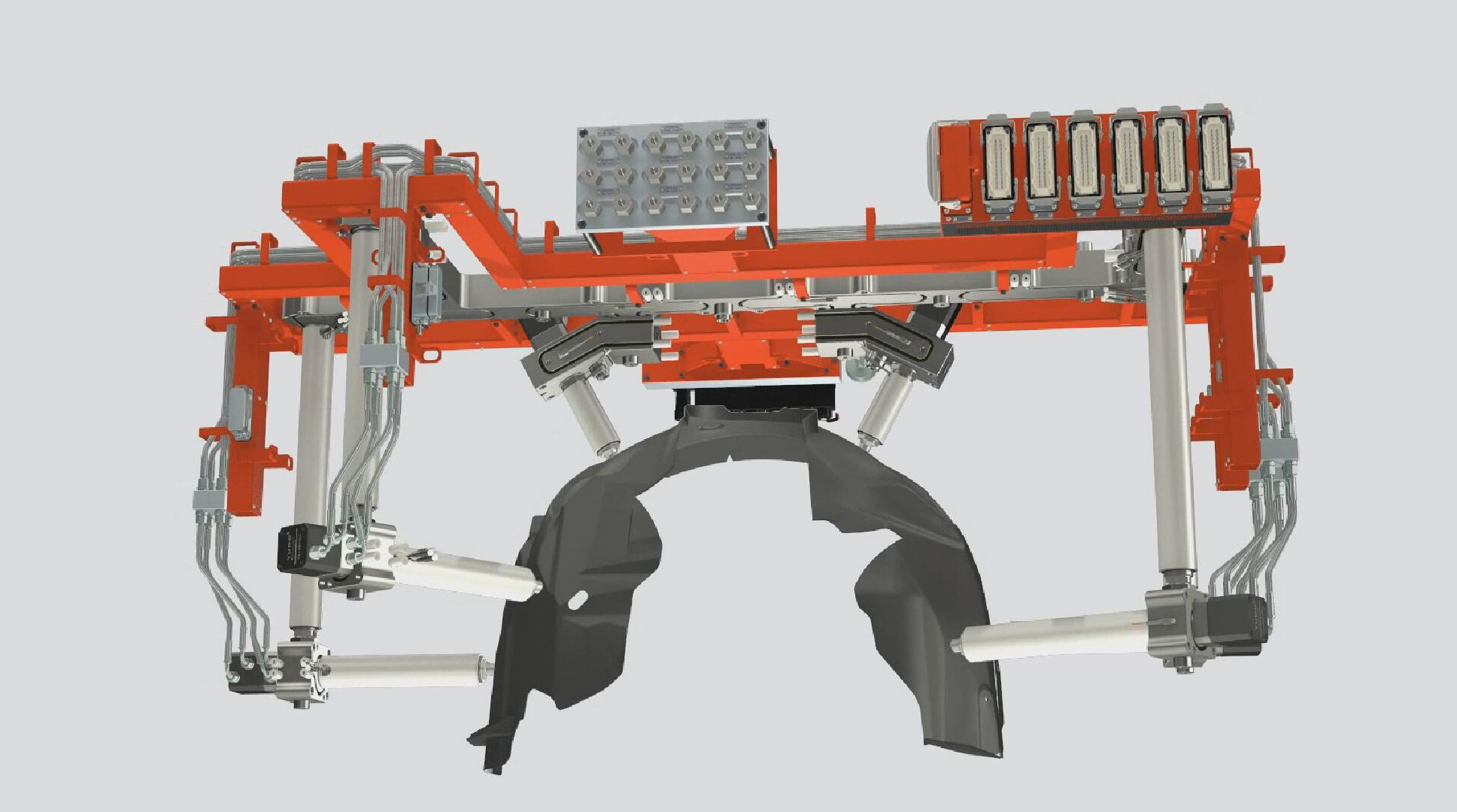

System Type: TINA AM

System Features

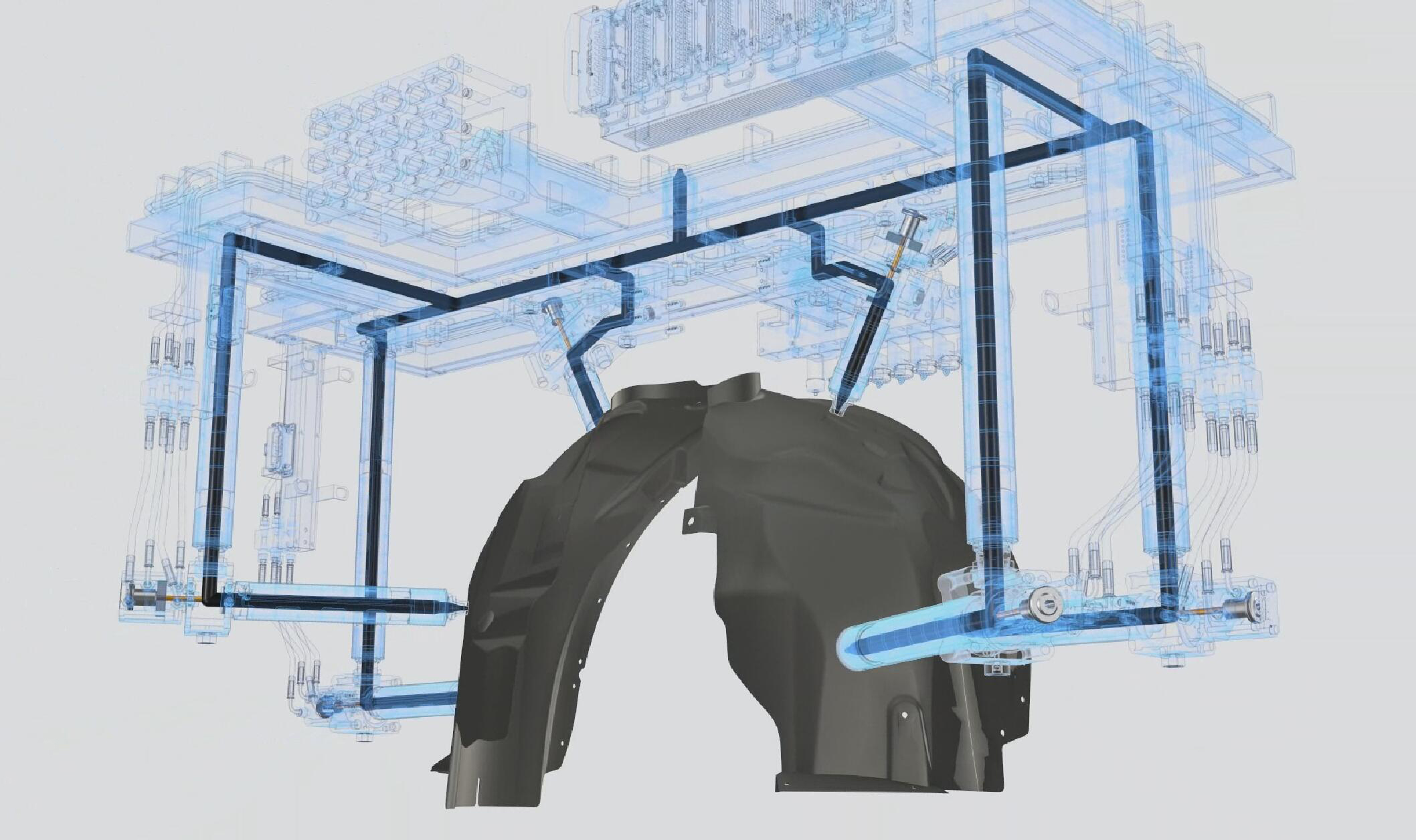

1) The direct injection method of TINA AM angled nozzle improves the problem of long flow length and big injection pressure by traditional transfer from hot runner to cold runner. It also shortens the product's molding cycle,reduces the  labor cost and material waste and improves the work efficiency.

2) The improvement of angled system injection method from manifold connection to manifold-nozzle connection now makes the assembly easier, mold cutout less and mold strength better.

3) The thread connection between the nozzle and manifold helps avoiding leakage problem due to mold machining accuracy.
