09wk,2017 : Successful Case

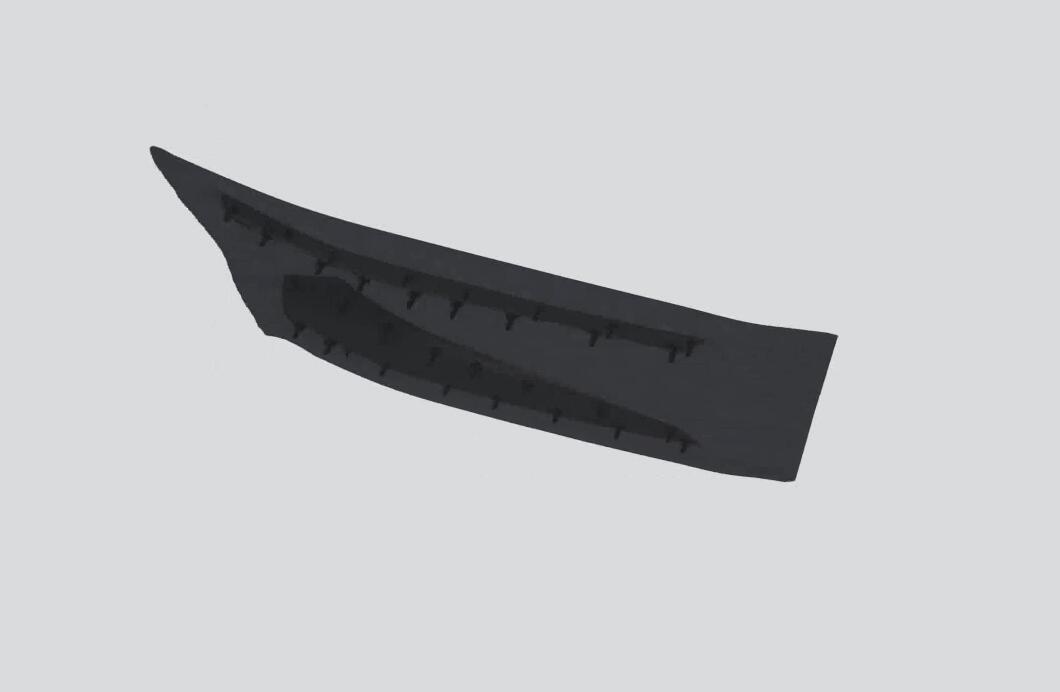

TINA_AM_L & R Front Door Panel

Material: ABC+PC

Part Weight: 653g

Cavity Qty.: 2

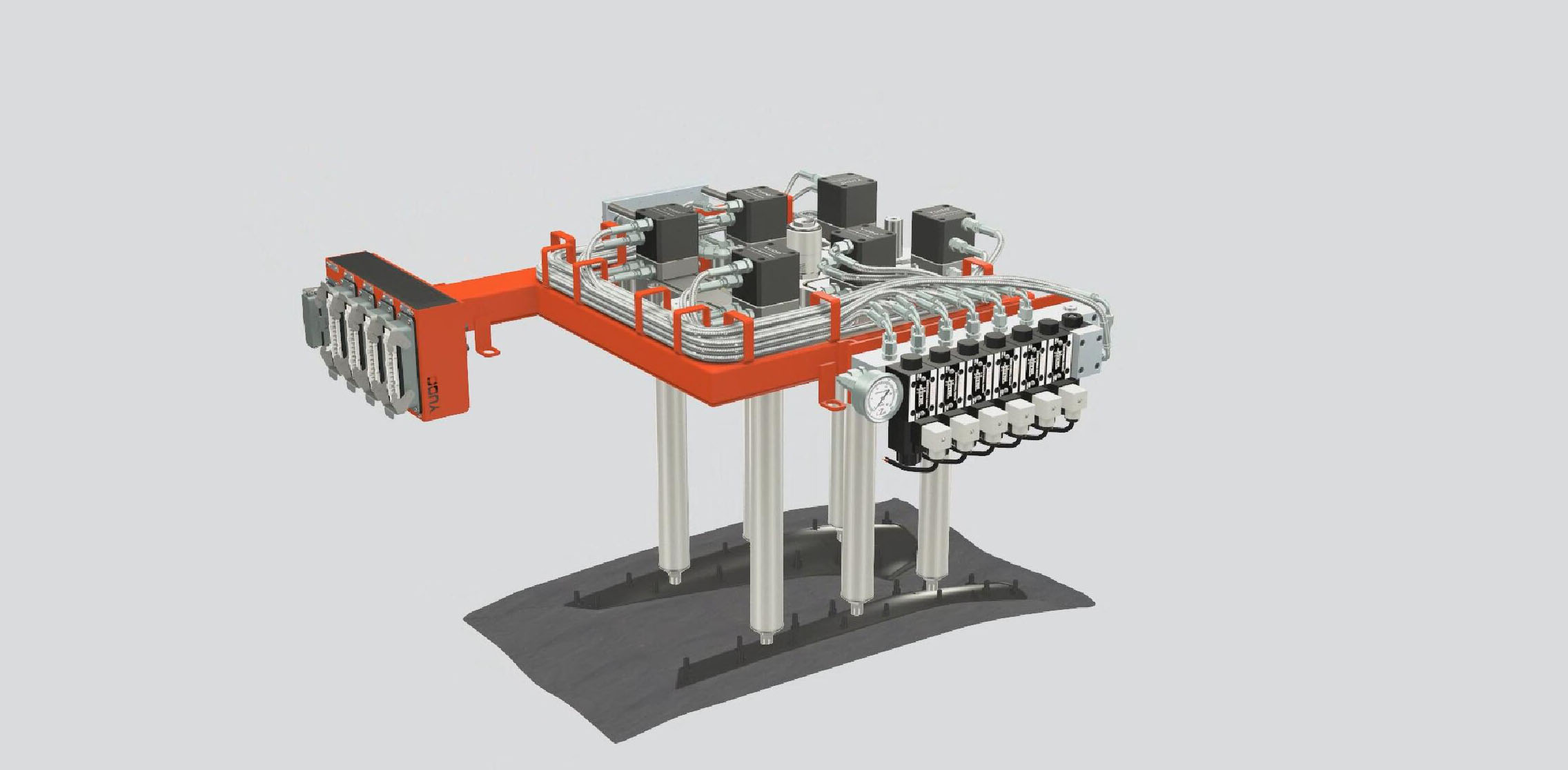

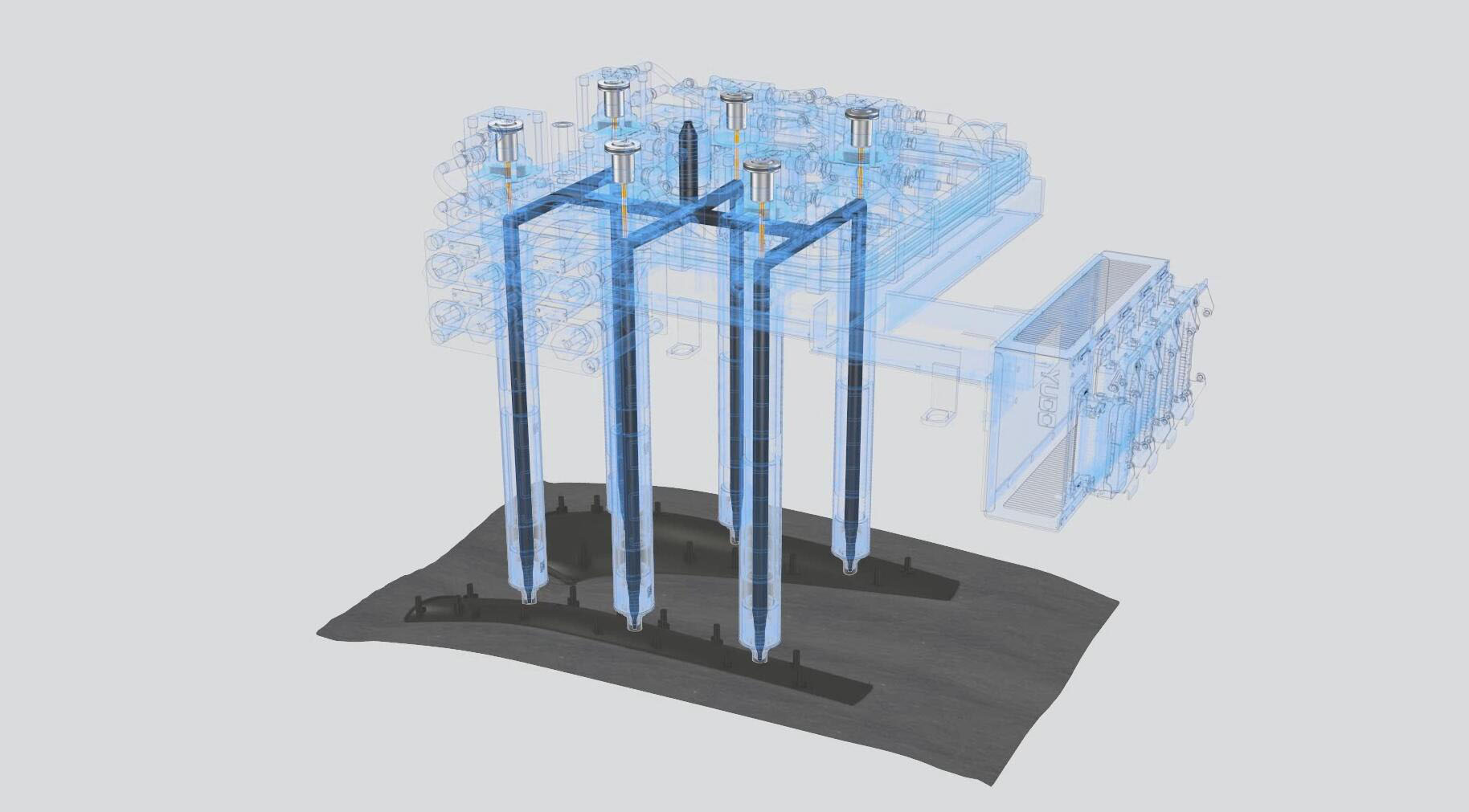

System Type: TINA AM

System Features

1) This is cloth or leather wrapping low pressure injection molding product,TINA AM system is adopted to solve the issue of product sprue and heliosphere and meets the low pressure and nozzle head temperature requirement when injection.It can avoid cloth or leather damage which can lead to failure molding problem and ensure the product is beautiful.

2) TINA AM system is delivered as one whole system to save assemble / disassemble time and prevent resin leakage due to assemble mistake.

3) The nozzle and manifold are connected with screw type which can avoid resin leakage caused by mold machining accuracy.

4) The matching areas of hot runner system and mold arereduced and pipe connection is adopted for pneumatic / hydraulic & cooling which make mold design and machining simpler.
