16wk,2019 : Successful Case

Product Name : Automobile Word Plate

Resin : ABS

Weight :3g

System Type : TINA EPT

Cavity : 2

Description ：

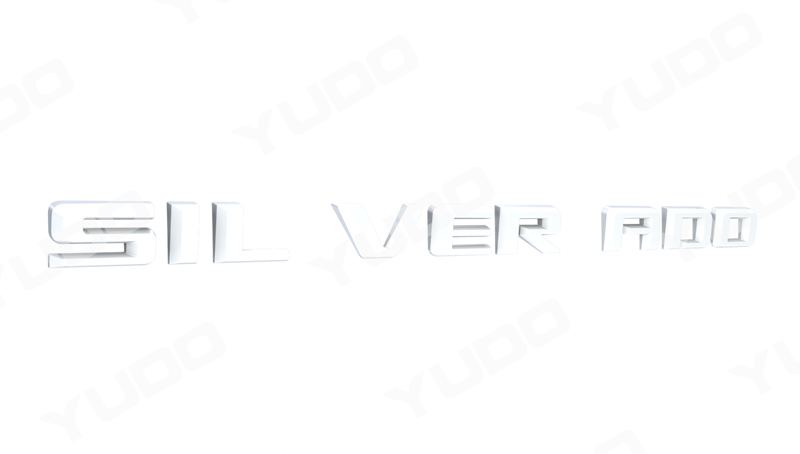

1. The injection part is car logo.Two cavities in the mold are connected by cold runner, thus open gate with big diameter is applied for effective cost saving.

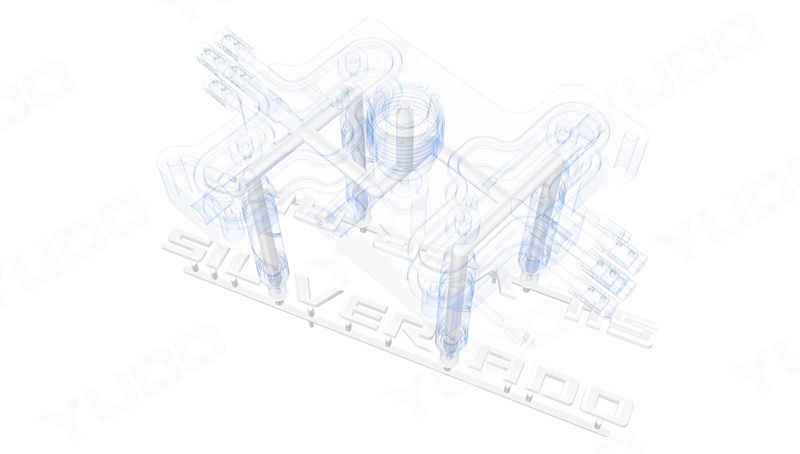

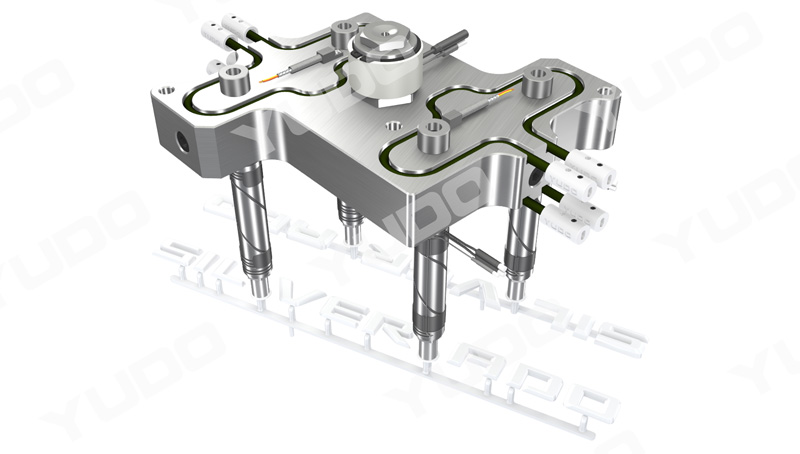

2. The flow of plastic material is complex and the injection pressure is big due to the part structure, thus nozzles and manifold are designed in threaded connection to reduce the risk of leakage.
