13wk,2019 : Successful Case

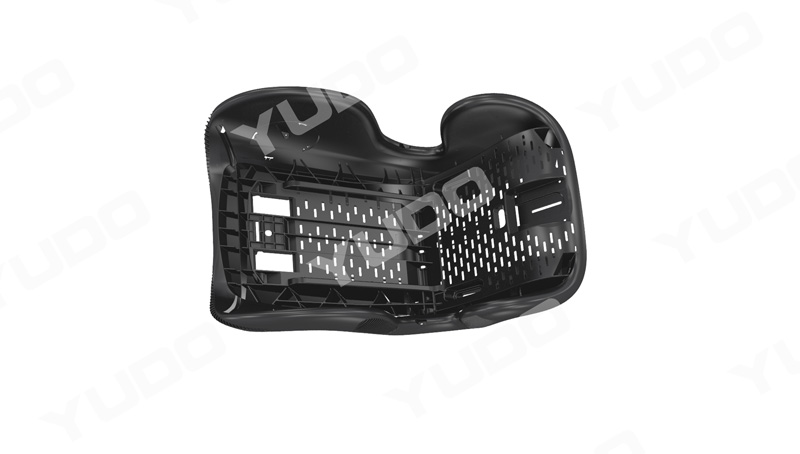

Product Name : Car Seat

Resin : PP

Weight : 3775g

System Type : TINA AM

Cavity : 1

Description ：

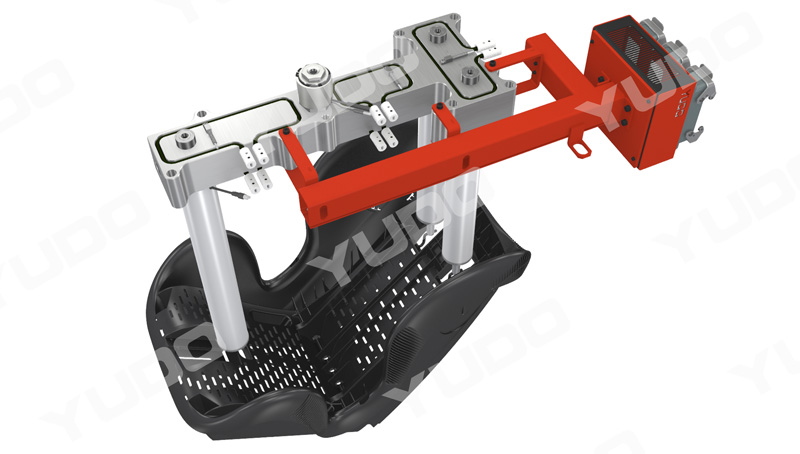

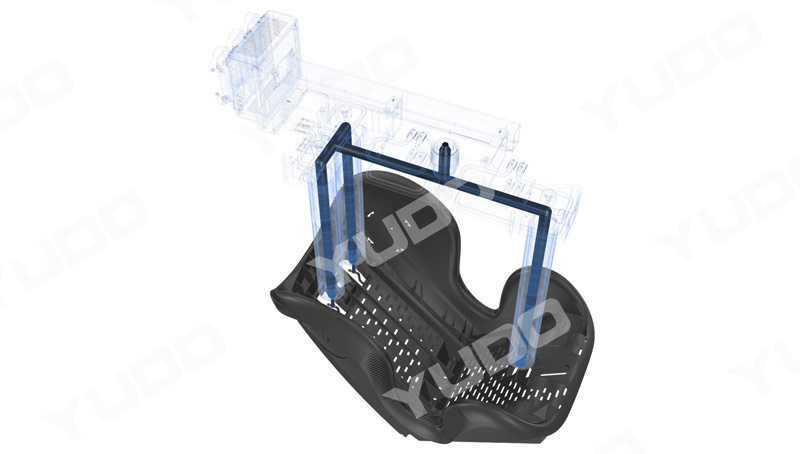

1. The injection part is car seat with big weight, long flow distance and complex structure, thus AM 22 system is applied to ensure the injection volume.


2. The surface structure of the part is complex. The reticulate structure causes big pressure drop in the cavity, thus straight nozzle gate is applied to ensure stable pressure.

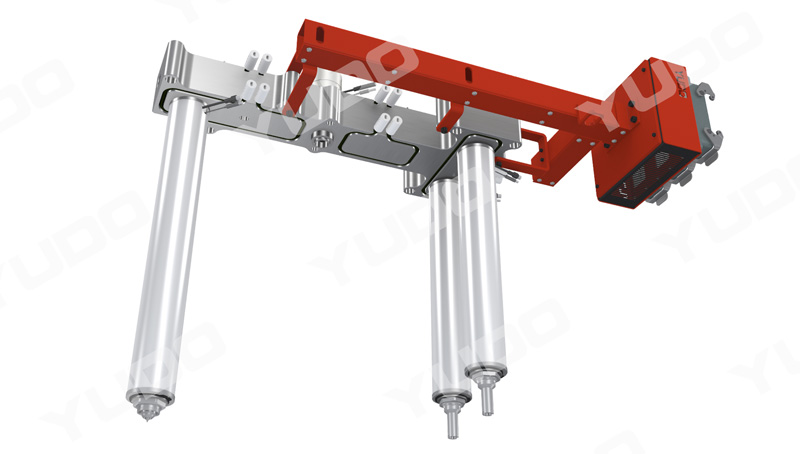

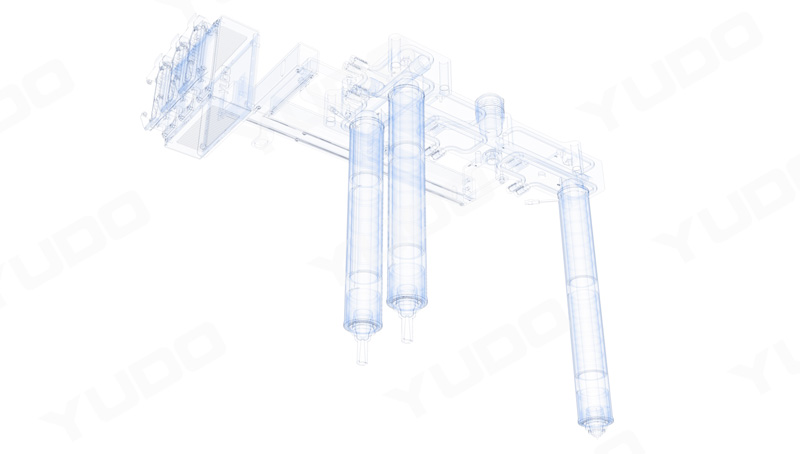

3. Nozzles are made very long due to the mold structure, to ensure temperature balance, each nozzle is equipped with three heaters to make sure the temperature can be controlled separately.
