34wk,2018 : Successful Case

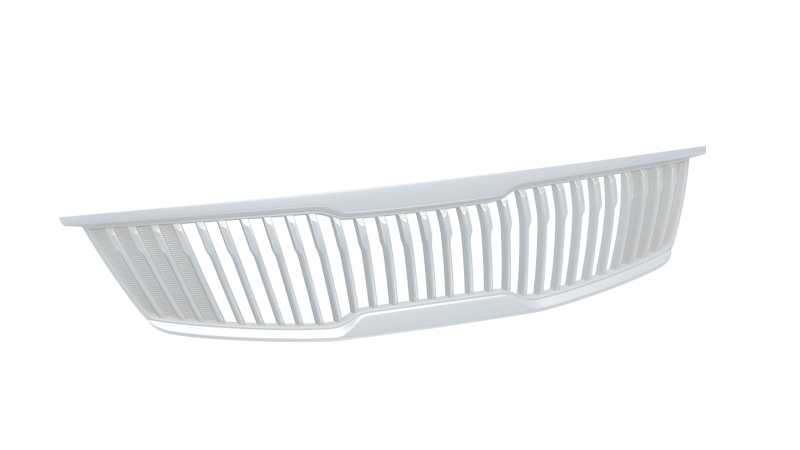

Product Name : Car Grill

Resin : ABS (Electroplate)

Weight : 935g

System Type  : TINA AM

Cavity : 1

Description：

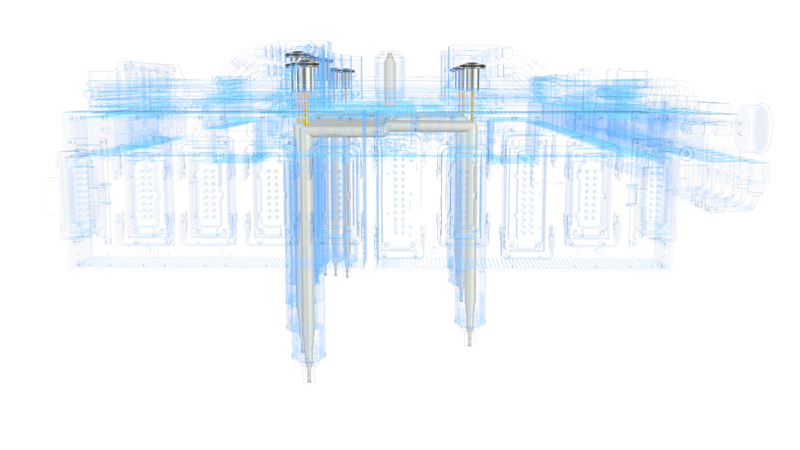

1. As the injection part is electroplated car grill,  hot runner system is made in specialized structure to ensure the appearance.



2.The part is in latticed structure, thus the resin flow path is complex and the injection points are close and large in quantity, to ensure the mold strength, manifold pads and screw connections are designed in special structure.

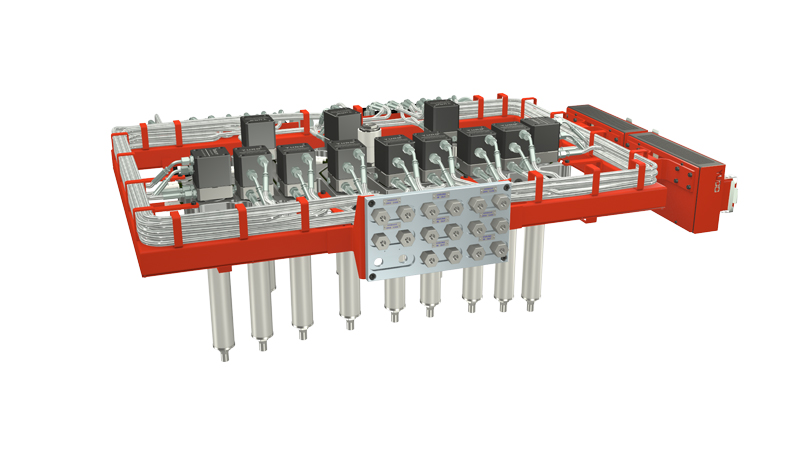

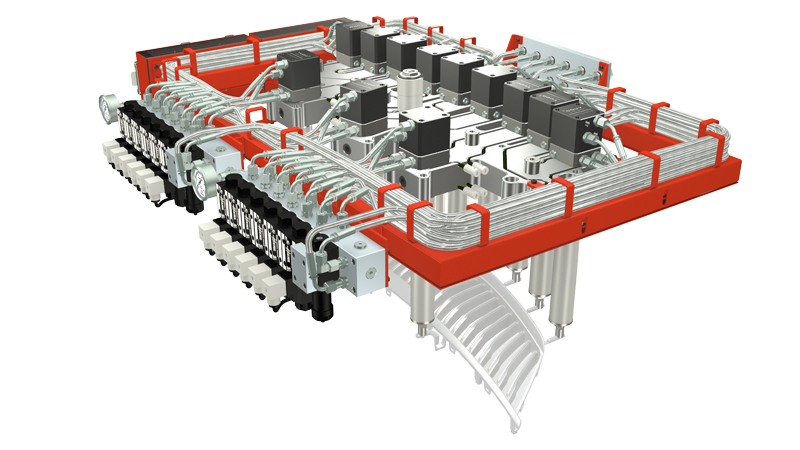

3.With TINA AM pre-wired system, all the hot runner components are assembled ahead, thus makes mold tooling simpler and insures convenient assembly and maintenance.
