23wk,2018 : Successful Case

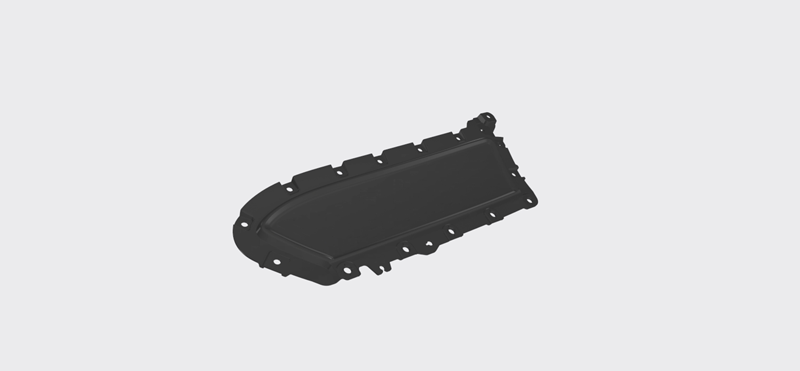

Automotive Interiors

Resin: ABS

Weight: 1500g

Thickness: 2.5 mm

Cavity:8 Cavities

Color: Black

introduction：

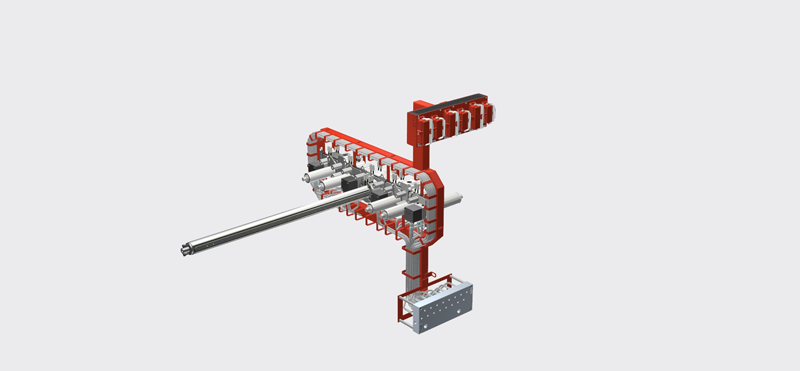

1.Super long NL heated by manifold heaters  is adopted  to guarantee sufficient heat and balanced temperature.

2.All hot runner system nozzles are screw type to prevent resin leakage.

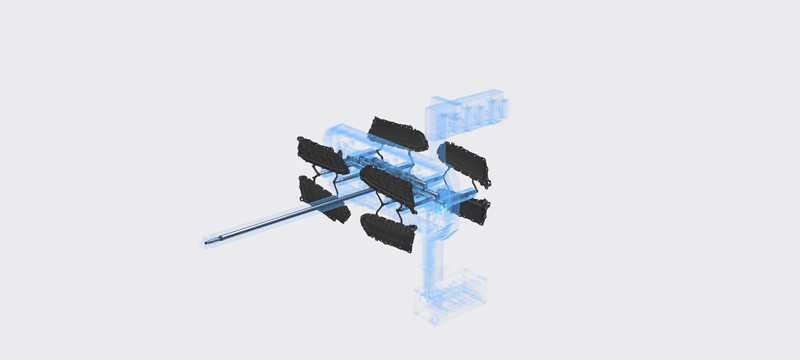

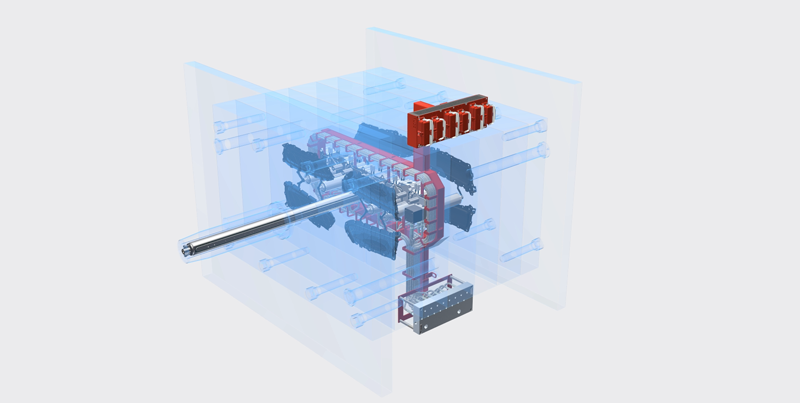

3.Stack mold structure is adopted, in which nozzles on both sides of one single manifold make most of  mold space & enhance productivity.
