9wk,2018 : Successful Case

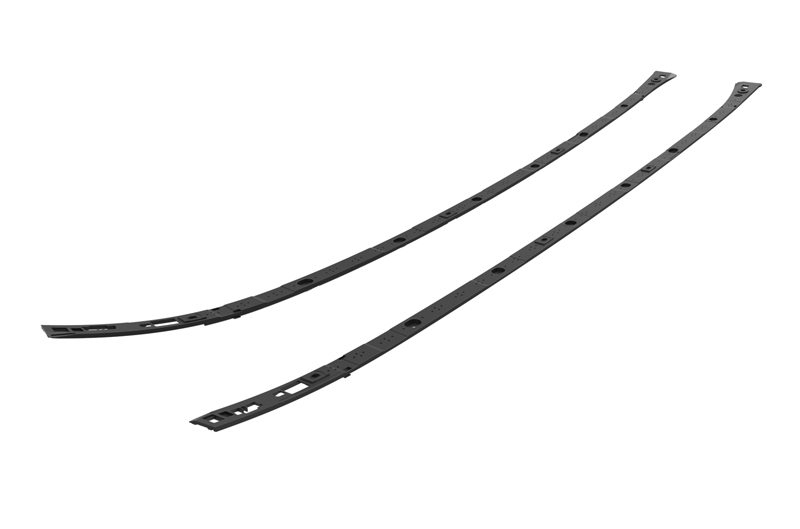

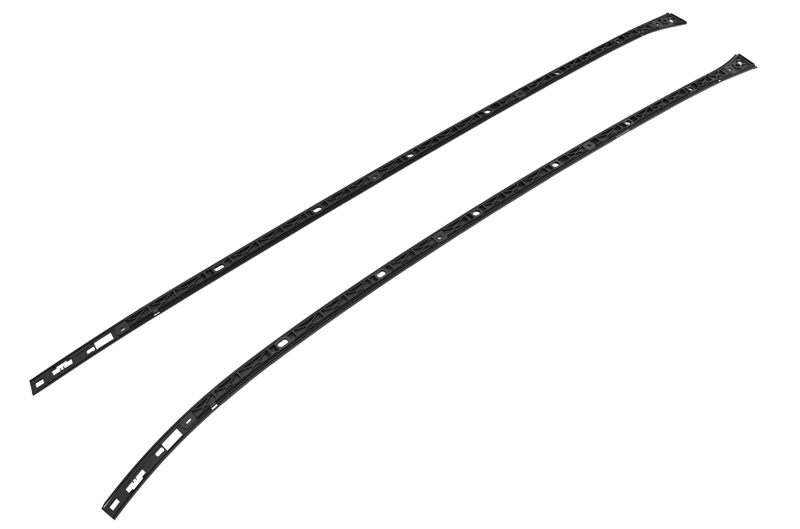

Product Name: Automotive Exterior Trimming

Resin: PA6+GF40%

Weight: 515.8g

Color: Black

Wall thickness: 4.0mm

System Type: TINA AM TVA

Nozzle qty: 14

Cavity: 2

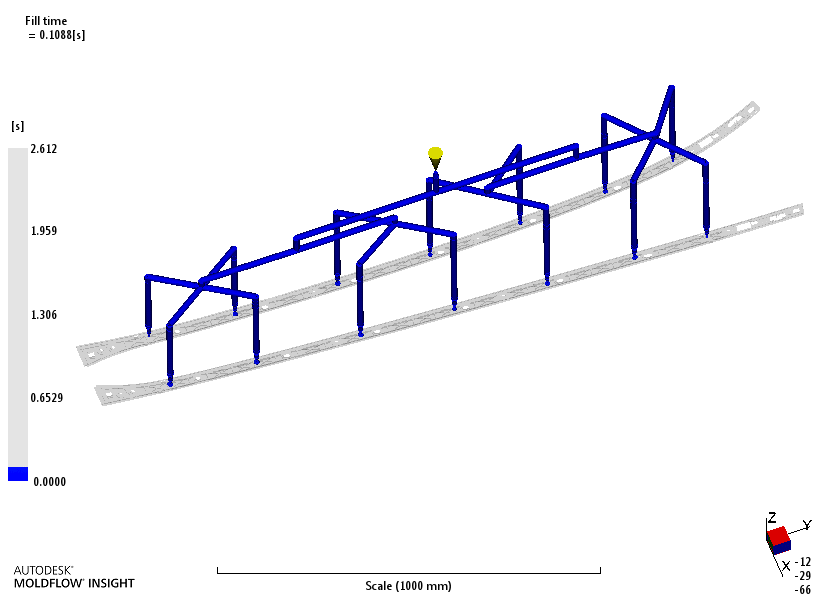

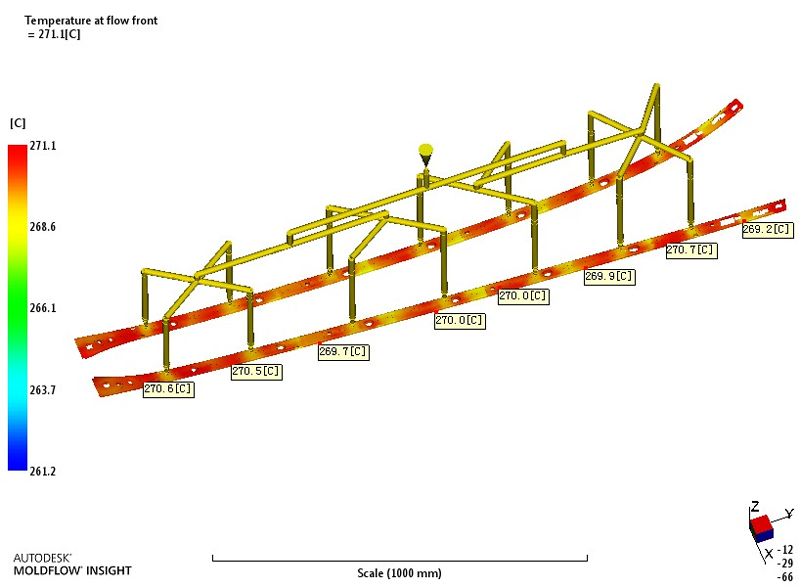

Mold flow analysis：

Project characteristics and customer requirements

NO.1: The part is automotive exterior trimming part. The dimension is big and has high requirement on the structural strength. The injected resin is PA6+GF40%, in which requires high resistance on abrasion and corrosion. The nozzles are made with special material, which can ensure enough heat near the gate area and good resistance on abrasive and corrosion.

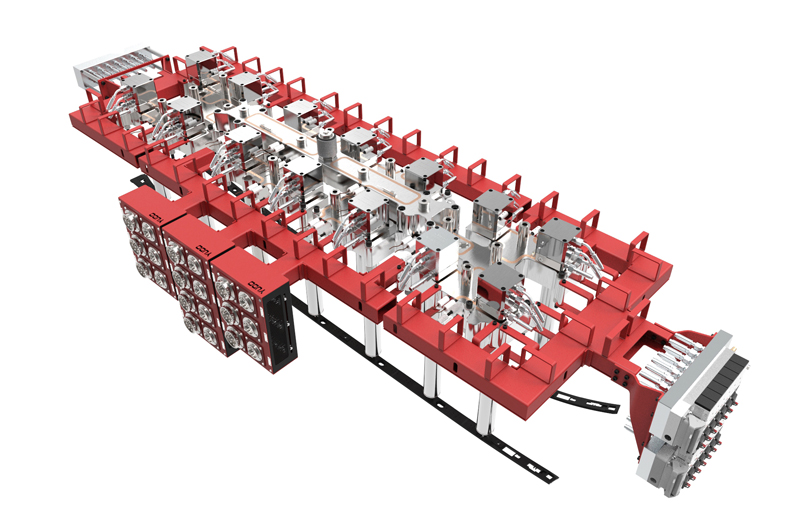

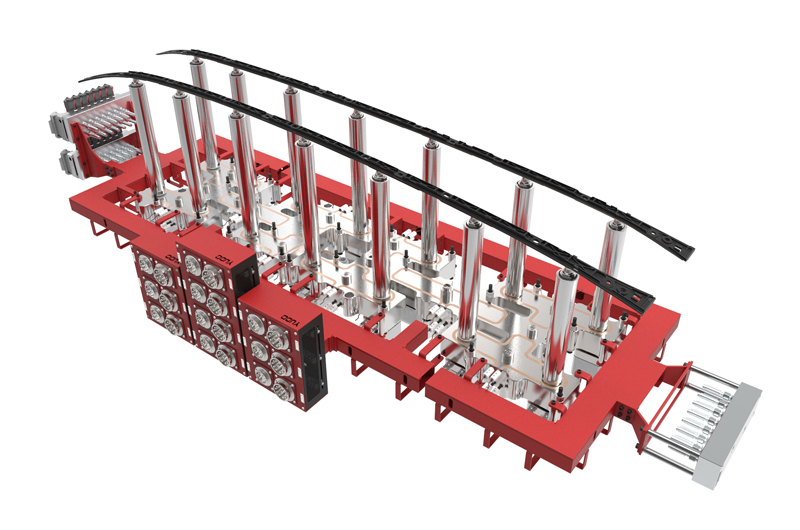

NO.2: TINA AM system is a pre-wired, unitized system, which is convenient for assembly and disassembly. Also it can prevent any possible leakage happened due to the missing of components during assembly or maintenance. The air and cooling channels are connected by pipes, which leads to simple mold design and machining.

NO.3: The nozzles are screwed into the manifold, which can prevent leakage due to the accuracy on mold machining.
