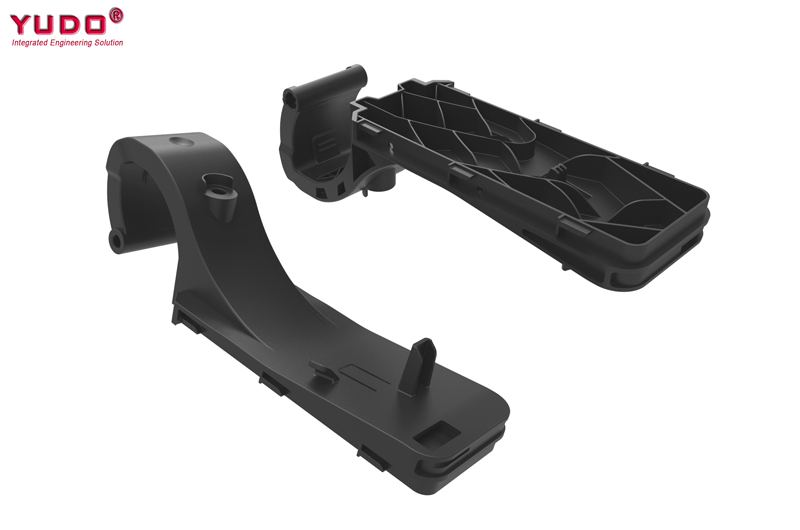

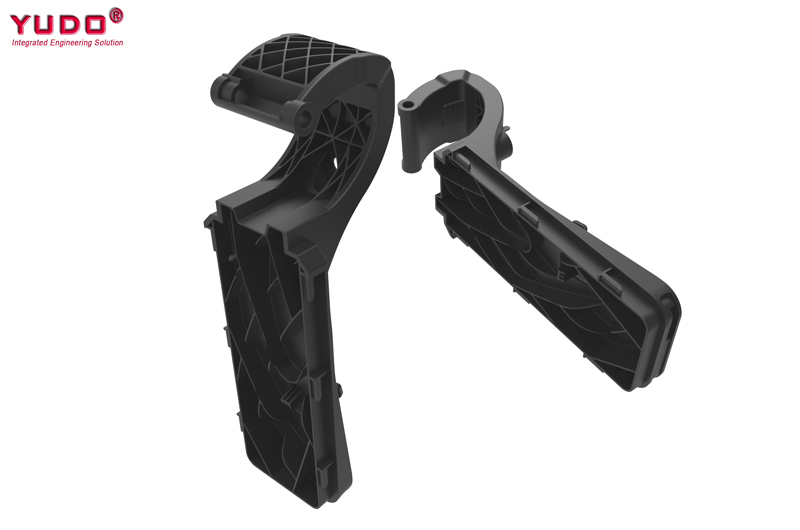

Product Name: Automotive Components
Resin: PA6+GF50%
Weight: 95g
Color: Black
Wall thickness: 2.5mm
System Type: TINA SV II
Nozzle qty: 1
Cavity: 1

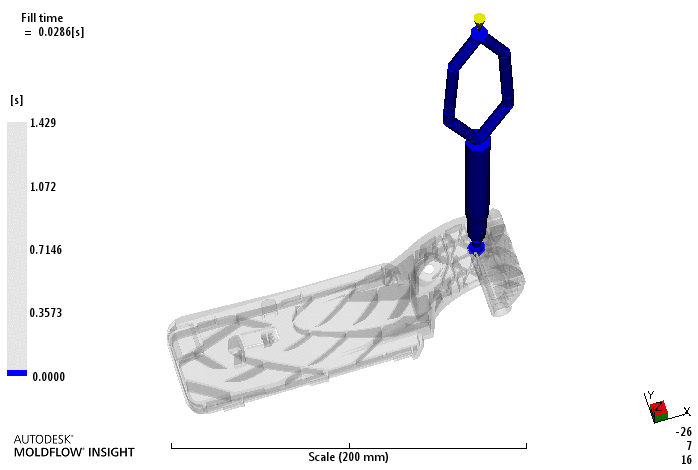

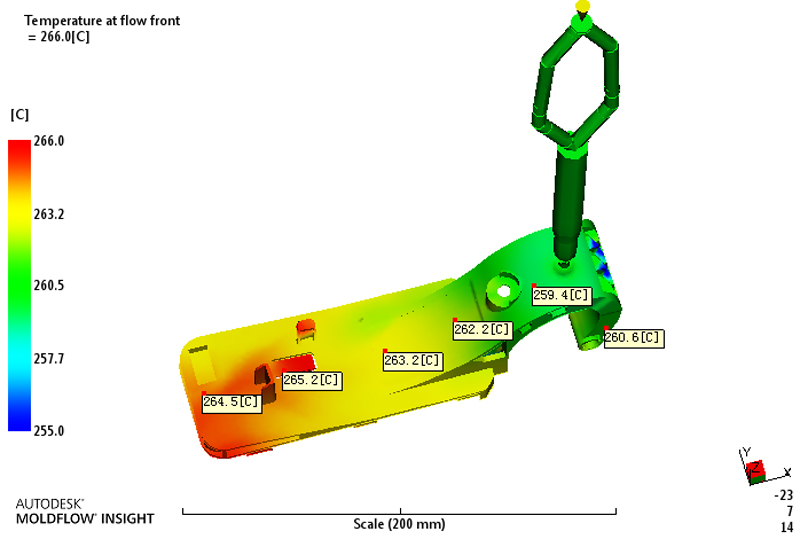

Mold flow analysis：
Project characteristics and customer requirements

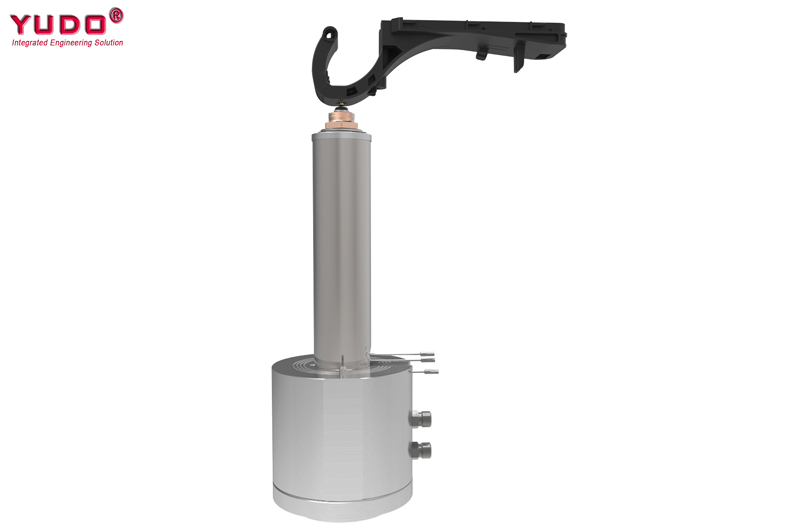

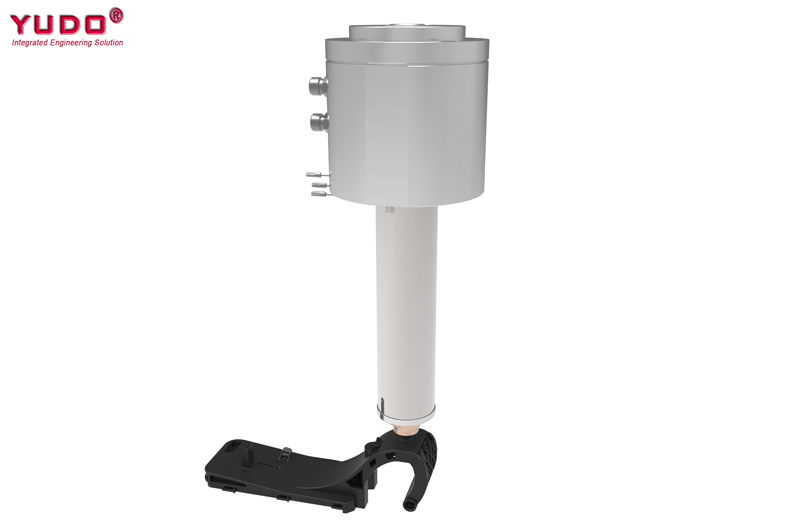

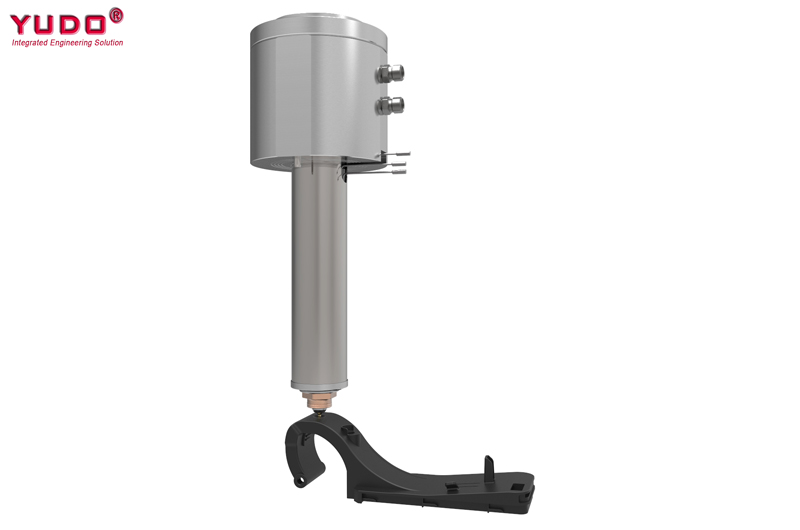

NO.1: TINA SVV II is a single valve system. The compact design can save the mold spaces efficiently. Mold machining is simple and easy for installation and operation.
NO.2: The part is injecting with PA6+50%GF, which is highly demanding for abrasion-resistance and corrosion-resistance. For this application, we choose special tip material for anti-abrasion and stable temperature at tip end.
